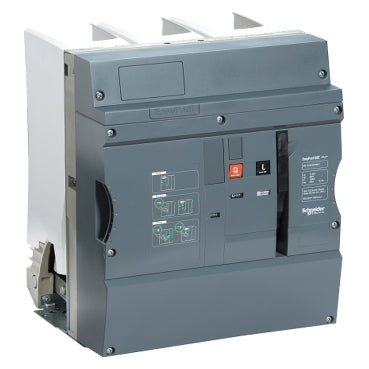

Basic Function Vacuum Circuit Breaker 0-12kV 75kVp 25kA 3s 800A 210 IEC

Specifications
Main
Master range    Easy Series
Range of product    EasyPact
Product name    EasyPact EXE
Switching device    Circuit breaker
Breaking technology    Vacuum
Product or component type    Circuit breaker
Pole type    Open
Number of poles    3
Network type    AC
Type of installation    Indoor
Integration type    Fixed
Variant    Basic function
Standards    IEC 62271-100:2012
Rated voltage (Ur)    12 kV
Rated short-duration power frequency withstand voltage (Ud) / Common value    28 kV
Rated lightning impulse withstand voltage (Up) / Common value    75 kV
Rated frequency (fr)    50/60 Hz
Rated continuous current (Ir)    800 A
Rated short-circuit breaking current (Isc)    25 kA
Rated short-circuit making current    62.5 kA 50 Hz
65 kA 60 Hz
DC time constant (τ)    45 ms
DC component    30 %
Rated short-time withstand current (Ik)    25 kA
Rated duration of short-circuit (tk)    3 s
Rated peak withstand current (Ip)    62.5 kA 50 Hz
65 kA 60 Hz
Rated first pole-to-clear factor (kpp)    1.5
Rated out-of-phase breaking current (Id)    7.88 kA
Rated line-charging breaking current (Il)    10 A
Rated cable-charging breaking current (Ic)    25 A
Rated single capacitor bank-breaking current (Isb)    400 A
Rated operating sequence    O - 3 min - CO - 3 min - CO
O - 0.3 s - CO - 3 min - CO
O - 0.3 s - CO - 15 s - CO

Complementary
Auxiliary contact composition    4 NO + 4 NC
Operating time    < 50 ms opening time
< 66 ms break-time
< 71 ms closing time
Motor charging time    <= 7 s
Classification for electrical endurance    E2
Number of operations at short-circuit breaking current    50
Classification for the connection to the network    S1
Classification for capacitive currents    C2
Number of mechanical operations    10000 operating cycles
Classification for number of mechanical operations    M2
Mass    55 kg
Height    527 mm
Width    594 mm
Depth    429 mm
Phase distance    210 mm
Clearance in air to earth    150 mm
Upper lower connection distance    270 mm

Environment
Product certifications    ASEFA
Ambient air temperature for operation    -25…40 °C
Ambient air temperature for storage    -25…55 °C
Humidity conditions    Average relative humidity over 1 month <= 90 %
Average relative humidity over 24 h <= 95 %
Operating altitude    0...1000 m

Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    74.500 cm
Package 1 Width    58.000 cm
Package 1 Length    80.000 cm
Package 1 Weight    65.044 kg

Contractual warranty
Warranty (in months)    18
