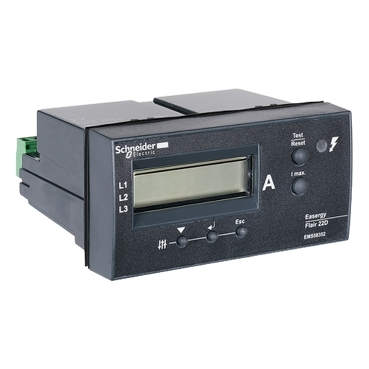

FLAIR 22D- LITHIUM DUAL POWERED DIN AMMETRIC FPI

Description

Easergy Flair is a family of fault passage indicators small in size, efficient, which adapt automatically to the network. The Fair 21D is Fault passage indicator without communication port protocol. Include advanced functions such as ammeter. And rated voltage range from 3 to 36 kV. Mechanical dimensions are 48 mm in height, 96 mm in width and 100 mm in depth.

Environmental Data

Use Better

Packaging made with recycled cardboard

No

Use Longer

Repair

No

Use Again

Take-back

No

Specifications

Main
Device short name    Flair 22D
Range of product    Easergy Flair
Product or component type    Fault passage indicator
Range compatibility    RM6
SM6-24
SM6-36
Flusarc
Premset
FBX
Rated voltage (Ur)    3…36 kV
Communication port protocol    Without
Complementary
Load current    3 A
Function available    Ammeter
Inrush restraint duration    0 s
3 s
70 s
Reset    Automatic reset 0…70 s upon current return 2 A or voltage return
Factory reset 1…24 h
By flush push-button
External contact
Local signalling    1 LED for fault indication
External light indicator without battery
Relay for fault indication
Numerical display for faulty phase indication
1 LED for voltage presence phase to phase or phase to neutral
1 LED for voltage absence phase to phase or phase to neutral
Supply    via current transformer
Li battery
Overcurrent protection    OFF
Auto
100...800 A, adjustable in steps of 50 A
Overcurrent fault    5…30 A, adjustable in steps of 5 A
30…200 A, adjustable in steps of 10 A
Time delay setting    Fault acknowledge time : 40...100 ms in steps of 20 ms
Fault acknowledge time : 100...300 ms in steps of 50 ms
Battery life    15 year(s) (in operation)
Height    48 mm
Width    96 mm
Depth    100 mm
Net weight    0.185 kg
Environment
Electromagnetic compatibility    Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m, 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test - test level: 4 kV CM, 5kHz level 4 conforming to IEC 61000-4-4
Immunity to impulse waves - test level: 42 Ohm level 3 (on input-output) conforming to IEC 61000-4-5
Immunity to impulse waves - test level: 2 Ohm level 3 (on power supply) conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 0.15...80 MHz, 10 V/m, 80 % MA (1 kHz) level 3 conforming to IEC 61000-4-6
Immunity to magnetic fields - test level: 30 A/m (permanent)-300 A/m (1 s) level 4 conforming to IEC 61000-4-8
Damped oscillating waves - test level: +/- 2.5 kV CM, +/- 1 kV DM, 1 MHz level 4 conforming to IEC 61000-4-12
Mechanical robustness    Vibrations 9…200 Hz 1 gn 1 cycle conforming to IEC 60068-2-26
Seismic tests 2 gn horizontal position conforming to IEC 60068-2-29
Seismic tests 1 gn vertical position conforming to IEC 60068-2-29
Shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27
IP degree of protection    Front panel: IP41
Other parts: IP30
IK degree of protection    IK07 conforming to IEC 62262
Ambient air temperature for operation    -40…70 °C
Relative humidity    95 % conforming to IEC 60068-2-30
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    7.100 cm
Package 1 Width    11.100 cm
Package 1 Length    13.700 cm
Package 1 Weight    236.000 g
Unit Type of Package 2    S04
Number of Units in Package 2    48
Package 2 Height    30.000 cm
Package 2 Width    40.000 cm
Package 2 Length    60.000 cm
Package 2 Weight    12.028 kg
Contractual warranty
Warranty (in months)    18
