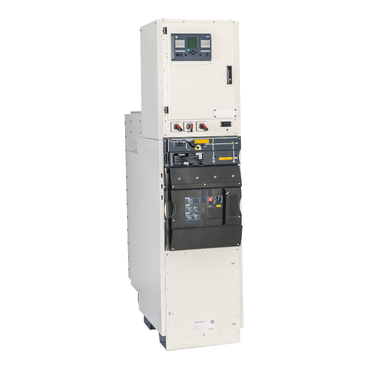

MV fixed pattern modular switchboard up to 13.8 kV

Part of SeT Series

GenieEvo is a comprehensive, environmentally insensitive medium voltage switchgear range for utilities, MV consumer and industrial substations, data centers, large commercial centers, hospitals applications
Discover GenieEvo

A simple and flexible approach to switchgear

GenieEvo is a comprehensive, environmentally insensitive medium voltage switchgear range. With quick delivery, advanced safety features and compliance with the most stringent standards, it offers you an innovative, simple and highly reliable solution to your primary or secondary distribution needs.
It offers 6 switchgear options and 18 protection and control module options, providing a total of 69 standard panel combinations. Customised solutions are also available on request.

Pre-engineered metalclad switchgear including

•    Cast resin encapsulated MV system
•    Demountable Evolis EXE vacuum circuit breaker
•    Controlled air, resin encapsulated series disconnector
•    Rated voltage: 13.8 kV

25 kA version:

•    Rated current: 200, 630, 1250, 2000, 2500 A
•    Rated short time withstand current: up to 25 kA / 3 s
•    Internal Arc AF, AFLR 25 kA / 1 s

31.5 kA version:

•    Rated current: 200, 630, 1250, 2000 A
•    Rated short time withstand current: up to 31.5 kA / 3 s
•    Internal Arc – AFLR 31.5 kA / 1 s
•    Flexible pre-engineered protection and control modules (PowerLogic P3, PowerLogic P5, Micom)
•    Power Logic advanced Electrical Network Management System
•    Smart grid and asset management ready
