Power Logic HU250: head unit communication gateway without Wireless

Description

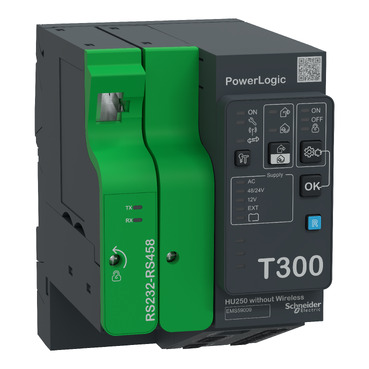

Head unit communication gateway without Wireless. It includes for communication port: 2 RJ45 for Ethernet, 1 RJ45 for Modbus RS485, dual Ethernet port daisy-chain. The number of digital inputs is 6 for multipurpose and 2 for remote control. And number of digital outputs is 2 for multi-purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificate. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.

Specifications

Main
Range    Power Logic
Device short name    HU250
Complementary
Product or component type    Communication gateway
Communication port protocol    DNP3 serial and TCP master station/outstation
Modbus serial and TCP client/server
Modbus RTU client/server
IEC 61850-8-1 controlling/controlled station
IEC 60870-5-104 controlling/controlled station
IEC 60870-5-101 controlled station
Communication port support    ETHERNET 4 RJ45
RS485/RS232 1 RJ45
Data recording    Event logs
4 data logs
1 ms time stamps
500000 events
Sequence of event recording
Memory capacity    16 MB
Time synchronization protocol    NTP
SNTP
Synchronization time between inputs    1 ms
Control type    Illuminated push-button status:
Communication service    Web server local Ethernet:
web services    Event log
Alarm
Operating/Status report
Assistance in commissioning and operating the installation
Security/authority verification
Reports and diagrams

Programming language    Calculation formula
ST (structured text)
IL (instruction list)
LD (ladder)
FBD (function block diagram)
SFC (sequential function chart)
Number of inputs    8 digital multi-purpose conforming to IEC 61131-2 type 3
2 digital remote control
1 analog measure temperature
Number of outputs    2 digital (relay) multi-purpose:
[Us] rated supply voltage    12...48 V DC +/- 20 %
Power consumption in VA    3 VA
Environment
User language    Multi-language
Electromagnetic compatibility    Electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4
Conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6
Conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16
100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12
Radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3
Immunity to voltage dips criteria A conforming to IEC 61000-4-29
Electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2
Surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5
Magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8
Conducted and radiated emissions class A conforming to EN 55022
Fixing mode    Clip-in (DIN rail)

Type of installation    Indoor
Outdoor in cabinet
IP degree of protection    IP2X body: conforming to IEC 60529
IP4X front: conforming to IEC 60529
IK degree of protection    IK07 conforming to IEC 62262
Relative humidity    5…95 % conforming to IEC 60068-2-30
Mechanical robustness    Vibrations 10…2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6
Bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29
Shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27
Ambient air temperature for storage    -40…85 °C
Ambient air temperature for operation    -40…70 °C
Operating altitude    2000 m
Product certifications    CE
Standards    IEC 60255-27
Height    140 mm
Width    90 mm
Depth    140 mm
Net weight    0.55 kg
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    11.900 cm
Package 1 Width    19.100 cm
Package 1 Length    19.800 cm
Package 1 Weight    765.000 g
Unit Type of Package 2    S04
Number of Units in Package 2    9
Package 2 Height    30.000 cm
Package 2 Width    40.000 cm
Package 2 Length    60.000 cm
Package 2 Weight    6.885 kg
Contractual warranty
Warranty (in months)    18
