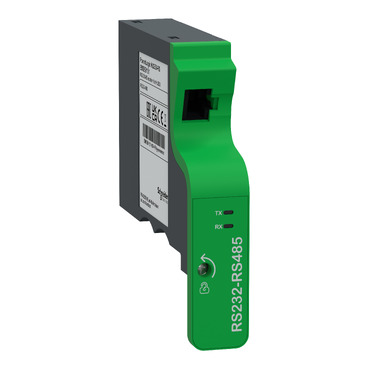

Power Logic HU250 RS232/422/485 interface box - RJ45

Description
This communication modem box used for HU250 of the Easergy T300 The degree of protection is IK07. It complies with CE. The operating temperature is -40°C to + 85°C. The storage temperature is -40°C to + 85°C. Mechanical dimensions are 30 mm in height, 115 mm in width and 133 mm in depth.

Specifications
Main
Range of product    PowerLogic T300
Device short name    HU250-RS
Product or component type    Modem communication interface
Complementary
Connector type    RJ45
Communication port support    RS485
RS422
RS232
Transmission rate    38400 bit/s
Environment
IK degree of protection    IK07 conforming to IEC 62262
Relative humidity    95 % conforming to IEC 60068-2-30
Ambient air temperature for operation    -40…85 °C
Ambient air temperature for storage    -40…85 °C
fire resistance    850 °C
Operating altitude    2000 m
Product certifications    CE
Height    30 mm
Width    115 mm
Depth    133 mm
Net weight    0.050 kg
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    3.000 cm
Package 1 Width    11.500 cm
Package 1 Length    13.500 cm
Package 1 Weight    105.800 g
Unit Type of Package 2    S02
Number of Units in Package 2    24
Package 2 Height    15.000 cm
Package 2 Width    30.000 cm
Package 2 Length    40.000 cm
Package 2 Weight    2.839 kg
Logistical informations
Country of origin    EE
Contractual warranty
Warranty (in months)    18
