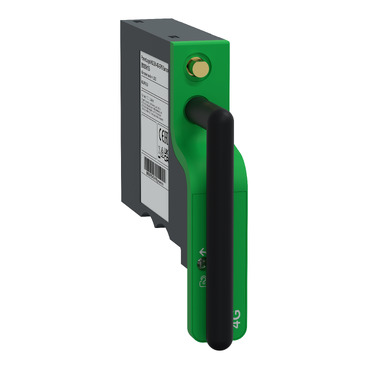

PowerLogic HU250: 4G modem box with GPS clock synchronization (1 ms), EU standard

Specifications

Main
Range of product    PowerLogic T300
Device short name    HU250-4G
Product or component type    Modem communication interface
Complementary
Device application    GPS clock synchronisation
frequency bands    Hexa FDD-band: 700/800/900/1800/2100/2600 MHz (28, 20, 8, 3, 7, 1) LTE
Dual band: 900/1800 MHzGSM/GPRS/EDGE
Connector type    SMA
transmission data    SMS notifications
Data
Communication port protocol    SMTP
SNMP
HTTP
UDP (User Datagram Protocol)
FTP
POP3
SSH
TCP (Transmission Control Protocol)
Environment
IK degree of protection    IK07 conforming to IEC 62262
Relative humidity    95 % conforming to IEC 60068-2-30
Ambient air temperature for operation    -40…85 °C
Ambient air temperature for storage    -40…85 °C
fire resistance    850 °C
Operating altitude    2000 m
Product certifications    CE
Height    30 mm
Width    115 mm
Depth    133 mm
Net weight    0.105 kg
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    3.0 cm
Package 1 Width    13.5 cm
Package 1 Length    11.5 cm
Package 1 Weight    101.6 g
Unit Type of Package 2    S02
Number of Units in Package 2    24
Package 2 Height    15 cm
Package 2 Width    30 cm
Package 2 Length    40 cm
Package 2 Weight    3.36 kg
Logistical informations
Country of origin    FR
Contractual warranty
Warranty (in months)    18
