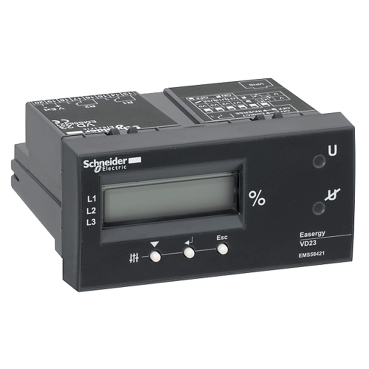

VD23 - VOLTAGE DETECTION RELAY

Environmental Data

Use Better

Packaging made with recycled cardboard

No

Use Longer

Repair

No

Use Again

Take-back

No

See all documents

Description

Easergy VD23 is a family of fault passage indicators small in size, efficient, which adapt automatically to the network. The VD23 is a compact voltage detection relay for MV networks voltage from 3 kV to 36 kV, 50/60 Hz, efficient and self-adapted. Detector with 24-48 Vdc external. The operating temperature is -40°C to + 70°C. The degree of protection is IP41 on front panel and IP30 in

Specifications

Main
Device short name    VD 23
Range of product    Easergy Flair
Product or component type    Voltage detection relay
Range compatibility    RM6
SM6-24
SM6-36
Flusarc
Premset
FBX
Rated voltage (Ur)    3…36 kV
Communication port protocol    Without
Complementary
Function available    Voltmeter
Local signalling    1 LED for voltage presence phase to phase or phase to neutral
1 LED for voltage absence phase to phase or phase to neutral
Supply    24...48 V DC external supply
Threshold setting    40...90 % of Un 10 % increments voltage presence
10...30 % of Un 10 % increments voltage absence
30...60 % of Un 10 % increments residual voltage
Time delay setting    0...1 s in steps of 0.1 s activation voltage relay
1...21 s in steps of 2 s activation voltage relay
1...15 min activation voltage relay
0...1 s in steps of 0.1 s release voltage relay
1...3 s in steps of 0.5 s release voltage relay
Height    48 mm
Width    96 mm
Depth    100 mm
Net weight    0.244 kg
Environment
Electromagnetic compatibility    Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m, 80 MHz...1 GHz level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test - test level: 4 kV CM, 5kHz level 4 conforming to IEC 61000-4-4
Immunity to impulse waves - test level: 42 Ohm level 3 (on input-output) conforming to IEC 61000-4-5
Immunity to impulse waves - test level: 2 Ohm level 3 (on power supply) conforming to IEC 61000-4-5
Conducted RF disturbances - test level: 0.15...80 MHz, 10 V/m, 80 % MA (1 kHz) level 3 conforming to IEC 61000-4-6
Immunity to magnetic fields - test level: 30 A/m (permanent)-300 A/m (1 s) level 4 conforming to IEC 61000-4-8
Damped oscillating waves - test level: +/- 2.5 kV CM, +/- 1 kV DM, 1 MHz level 4 conforming to IEC 61000-4-12
Mechanical robustness    Vibrations 9…200 Hz 1 gn 1 cycle conforming to IEC 60068-2-26
Seismic tests 2 gn horizontal position conforming to IEC 60068-2-29
Seismic tests 1 gn vertical position conforming to IEC 60068-2-29
Shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27
IP degree of protection    Front panel: IP41
Other parts: IP30
IK degree of protection    IK07 conforming to IEC 62262
Ambient air temperature for operation    -40…70 °C
Relative humidity    95 % conforming to IEC 60068-2-30
Packing Units
Unit Type of Package 1    PCE
Number of Units in Package 1    1
Package 1 Height    7.200 cm
Package 1 Width    11.200 cm
Package 1 Length    13.900 cm
Package 1 Weight    247.000 g
Unit Type of Package 2    S04
Number of Units in Package 2    48
Package 2 Height    30 cm
Package 2 Width    40 cm
Package 2 Length    60 cm
Package 2 Weight    12.556 kg
Logistical informations
Country of origin    FR
